How to create a data table widget

In this article we explain you how to create a new data table widget from scratch.

To create a new data table widget you first:

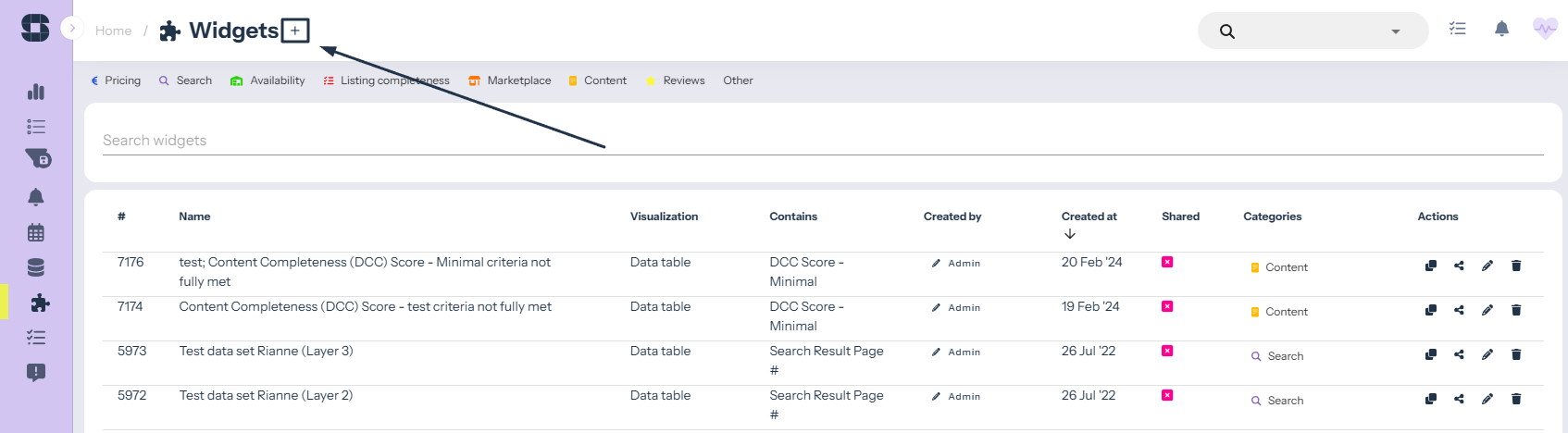

  • Navigate to the widgets section image-png-Sep-11-2024-10-14-39-5599-AM in the left menu
  • Then click the ” + ” right next to “Widgets”

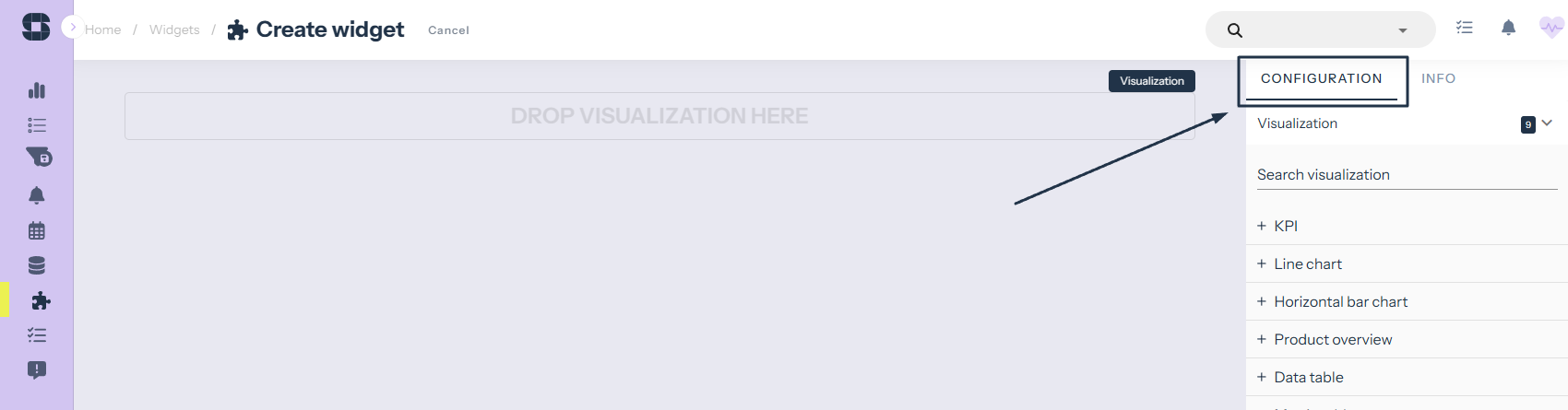

In the “Configuration” tab on the right side of your screen, you first:

  • Choose visualization type “Data table”: To display data in a tabular form, typically used to dive into details.
  • Select multiple table fields of your choice.

Explanation of table fields:

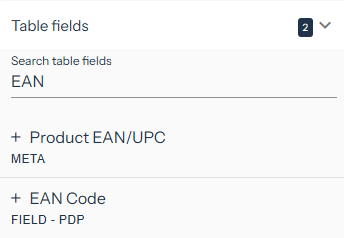

For instance, if we search for EAN. We see in the image below 2 different table fields for EAN:

  • Field – PDP: The EAN found on the Product Detail Page.
  • META: The EAN is retrieved from the 1st source where we encountered that product. This can be a product list, a Product Detail Page, or similar sources.We can also find a ‘special field’:
  • Product Tags –> Field – Special: Adding this field allows you to add custom table fields to your data table, derived from product tags in a product list. In the example below we show 2 product tags that we first added to the product list. Type the exact name(s) as they appear in the product list. In case you want to add more than 1 tag, you can separate them with a comma.

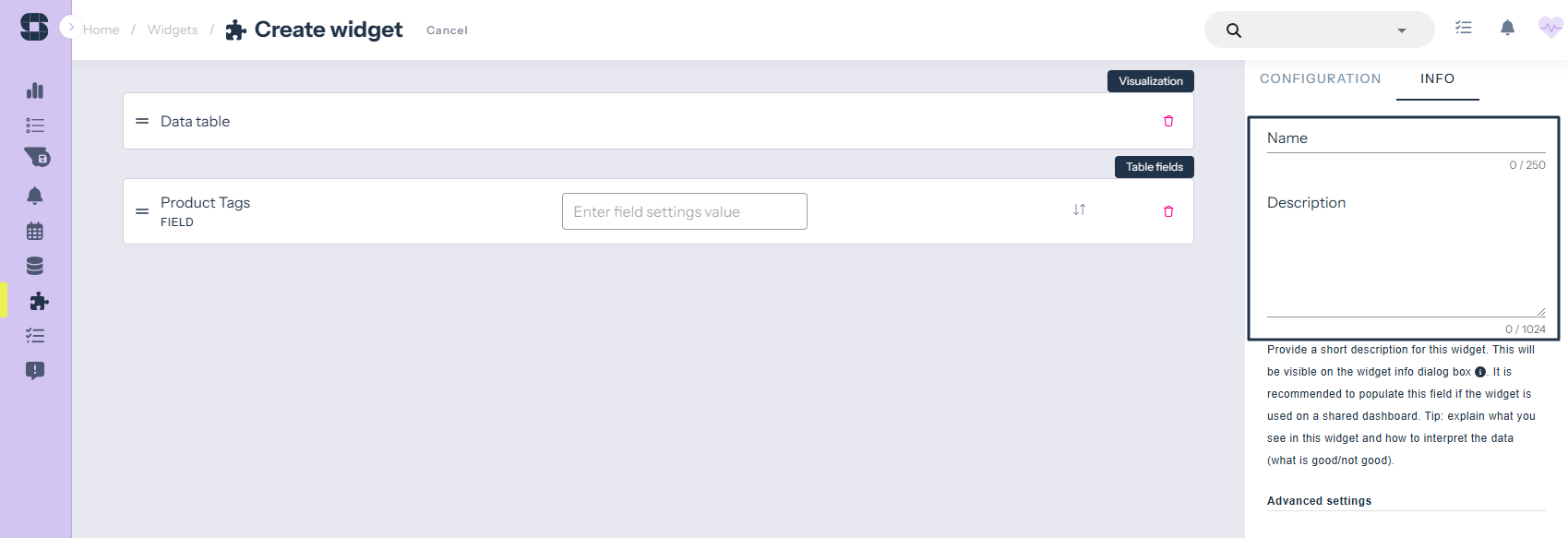

  • Move to the tab “INFO” to add a widget name and description

  • Click save.

You have now created a new widget. The next step will be to add the widget to a dashboard.
